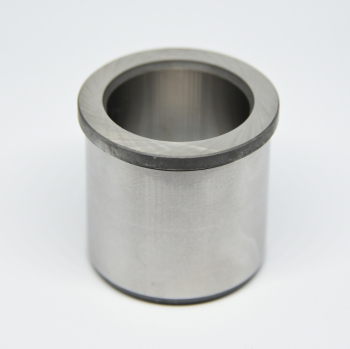

H14B

ID size
Please select from the options above.
Quantity:
-
+

OD: 1.9/16"
Length: 1.1/4" (under head)
Drill size range from 1.1/64" to 1.3/16", and also in metric from 25.5 to 30.0mm

Case hardened to a depth of 0.030" to 62-65HRC


Imperial Headed dimensions

Imperial ISO Tolerances & fits

Headed press fit bushes are generally used where a single operation such as drilling or reaming is performed, and replacement due to wear is not anticipated during the life of the tooling. The shoulder or  ‘top hat’ style is convenient for pressing the bush home and is also useful when it is desired to feed down to a dead stop. They are generally preferable where heavy axial loads may force a headless bush out of the jig plate. This type of bush can also be used for accurate alignment and location purposes.
