Metric headless (BS1098/1977 Pt.2, PP type)

Headless press fit bushes are generally used where a single operation such as drilling or reaming is performed, and replacement due to wear is not anticipated during the life of the tooling. Headless press fit bushes are usually mounted flush with the jig plate, and where space is at a premium they can be placed closer together than headed bushes. This type of bush can also be used for accurate alignment and location purposes.


Features:

Manufactured in UK to BS1098/1977 Pt.2
Range of bore sizes from 1.0 to 48.0mm
Bores ground to F7 tolerances
ODs ground to n6 tolerances, to suit H6 jig limits
Hardness from 62-65 HRC

Metric Headless dimensions




Metric headless (BS1098/1977 Pt.2, PP type)

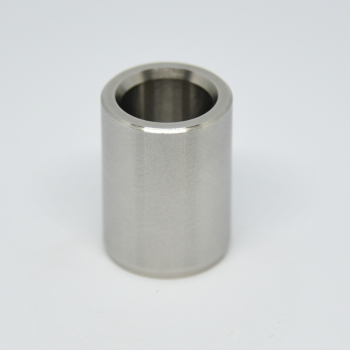

MP1S (ID 0.75 to 1.0mm)

MP1S (ID 0.75 to 1.0mm)

From £13.26 (exc VAT)

MP1M

MP1M

From £15.69 (exc VAT)

MP2S

MP2S

From £12.22 (exc VAT)

MP2M

MP2M

From £12.43 (exc VAT)

MP3S

MP3S

From £8.29 (exc VAT)

MP3M

MP3M

From £9.08 (exc VAT)

MP4S

MP4S

From £5.72 (exc VAT)

MP4M

MP4M

From £6.20 (exc VAT)

MP4L

MP4L

From £7.54 (exc VAT)

MP5S

MP5S

From £5.72 (exc VAT)

MP5M

MP5M

From £6.20 (exc VAT)

MP5L

MP5L

From £7.54 (exc VAT)

MP6S

MP6S

From £6.14 (exc VAT)

MP6M

MP6M

From £6.57 (exc VAT)

MP6L

MP6L

From £7.97 (exc VAT)

MP7S

MP7S

From £6.19 (exc VAT)

MP7M

MP7M

From £7.53 (exc VAT)

MP7L

MP7L

From £8.40 (exc VAT)

MP8S

MP8S

From £6.19 (exc VAT)

MP8M

MP8M

From £7.53 (exc VAT)

MP8L

MP8L

From £8.40 (exc VAT)

MP9S

MP9S

From £6.46 (exc VAT)

MP9M

MP9M

From £7.95 (exc VAT)

MP9L

MP9L

From £8.74 (exc VAT)

MP10S

MP10S

From £6.62 (exc VAT)
