OD: 8.0mm
Length: 20.0mm
Drill size range from 0.75 to 4.0mm

BSS code: RD08H
Hardened throughout to 62-65HRC
ID to F7 tolerance
OD to m6 tolerance

Metric Slip Renewable dimensions

Metric ISO Tolerances & fits

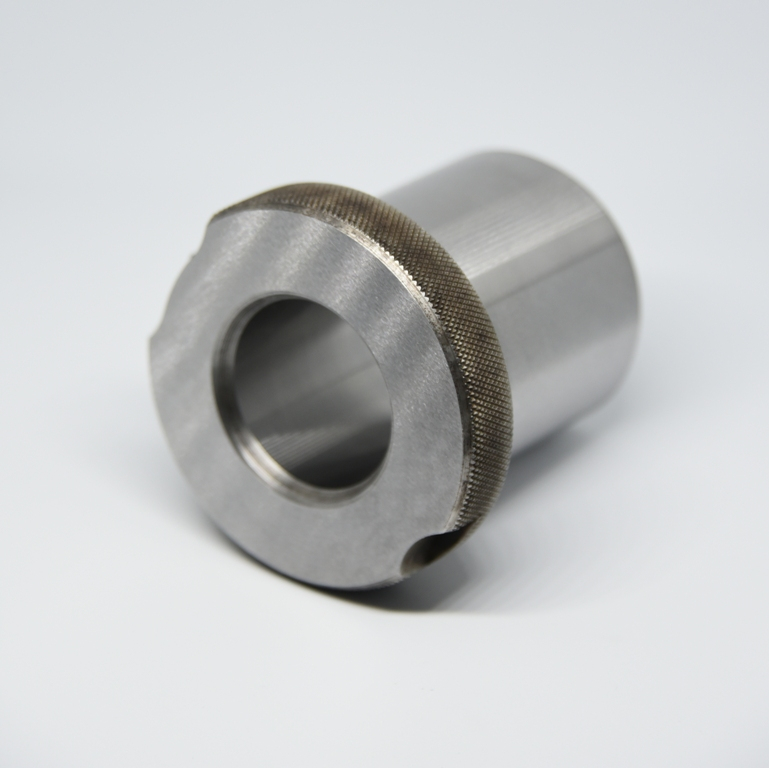

Fixed & slip renewable bushes are used where more than one operation is performed in the same hole of the component, such as drilling, and then reaming or counterboring. They are used in conjunction with liners due to their body O.D.'s being ground to a correct slip fit, enabling quick installation and removal. The renewable bush is held in place by a locking screw - but can be easily removed with a 45° turn.

No detailed specifications are available for this product.
