ID size
Please select from the options above.

OD: 1/2"
Length: 5/16" (under head)
Drill size range from No.27 to 19/64", and in metric from 3.7 to 7.5mm

Hardened throughout to 62-65HRC
OD ground to suit H6 tolerance

Imperial Slip Renewable dimensions

Imperial ISO Tolerances & fits

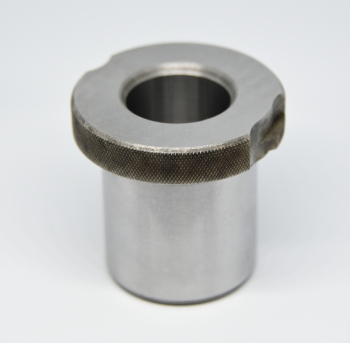

Fixed & slip renewable bushes are used where more than one operation is performed in the same hole of the component, such as drilling, and then reaming or counterboring. They are used in conjunction with liners due to their body O.D.'s being ground to a correct slip fit, enabling quick installation and removal. The renewable bush is held in place by a locking screw - but can be easily removed with a 45° turn.

No detailed specifications are available for this product.

There are no downloads for this product.
