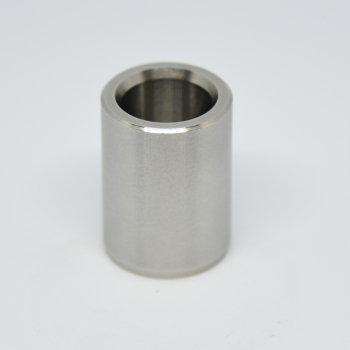

P17K

ID size
Please select from the options above.
Quantity:
-
+

OD: 2.1/4"
Length: 3"
Drill size range from 1.37/64" to 1.3/4", and also in metric from 39.75 to 44.25mm

Case hardened to a depth of 0.030" to 62-64HRC


Imperial Headless dimensions

Imperial ISO Tolerances & fits

Headless press fit bushes are generally used where a single operation such as drilling or reaming is performed, and replacement due to wear is not anticipated during the life of the tooling. Headless press fit bushes are usually mounted flush with the jig plate, and where space is at a premium they can be placed closer together than headed bushes. This type of bush can also be used for accurate alignment and location purposes.

No detailed specifications are available for this product.

There are no downloads for this product.
