MP1S

ID size
Please select from the options above.
Quantity:
-
+

OD: 3.0mm
Length: 6.0mm
Drill size range from 0.75 to 1.0mm

BSS code: PP03A
Hardened throughout to 62-65HRC
ID to F7 tolerance
OD to n6 tolerance

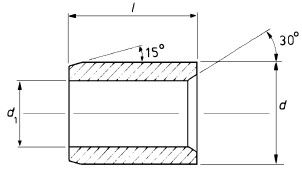

Metric Headless dimensions

Metric ISO Tolerances & fits

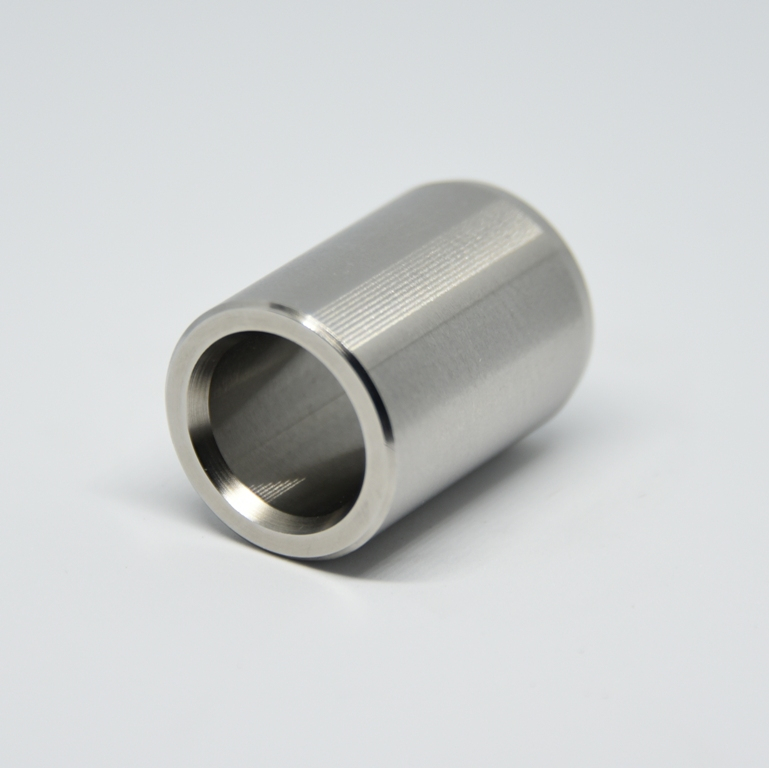

Headless press fit bushes are generally used where a single operation such as drilling or reaming is performed, and replacement due to wear is not anticipated during the life of the tooling. Headless press fit bushes are usually mounted flush with the jig plate, and where space is at a premium they can be placed closer together than headed bushes. This type of bush can also be used for accurate alignment and location purposes.
