Metric Headed (BS1098/1977 Pt.2, PH type)

Headed press fit bushes are generally used where a single operation such as drilling or reaming is performed, and replacement due to wear is not anticipated during the life of the tooling. The shoulder or  ‘top hat’ style is convenient for pressing the bush home and is also useful when it is desired to feed down to a dead stop. They are generally preferable where heavy axial loads may force a headless bush out of the jig plate. This type of bush can also be used for accurate alignment and location purposes.

Features:

Manufactured in UK to BS1098/1977 Pt.2
Range of bore sizes from 1.0 to 48.0mm
Bores ground to F7 tolerances
ODs ground to n6 tolerances, to suit H6 jig limits
Hardness from 62-65 HRC

Metric Headed dimensions

Metric Headed (BS1098/1977 Pt.2, PH type)
MH1S

MH1S

From £16.21 (exc VAT)

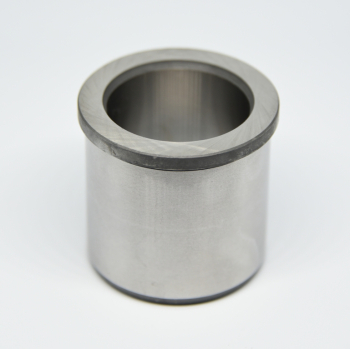

MH1M

MH1M

From £16.84 (exc VAT)

MH2S

MH2S

From £13.15 (exc VAT)

MH2M

MH2M

From £13.50 (exc VAT)

MH3S

MH3S

From £9.48 (exc VAT)

MH3M

MH3M

From £10.48 (exc VAT)

MH4S

MH4S

From £6.53 (exc VAT)

MH4M

MH4M

From £6.89 (exc VAT)

MH4L

MH4L

From £9.13 (exc VAT)

MH5S

MH5S

From £6.53 (exc VAT)

MH5M

MH5M

From £6.89 (exc VAT)

MH5L

MH5L

From £9.13 (exc VAT)

MH6S

MH6S

From £7.05 (exc VAT)

MH6M

MH6M

From £7.40 (exc VAT)

MH6L

MH6L

From £9.57 (exc VAT)

MH7S

MH7S

From £7.40 (exc VAT)

MH7M

MH7M

From £9.57 (exc VAT)

MH7L

MH7L

From £10.17 (exc VAT)

MH8S

MH8S

From £7.40 (exc VAT)

MH8M

MH8M

From £9.57 (exc VAT)

MH8L

MH8L

From £10.17 (exc VAT)

MH9S

MH9S

From £8.15 (exc VAT)

MH9M

MH9M

From £9.68 (exc VAT)

MH9L

MH9L

From £10.61 (exc VAT)

MH10S

MH10S

From £8.66 (exc VAT)
