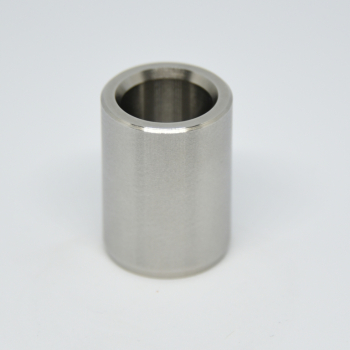

1" LP4E

Stock Code: LP4E1
Out of Stock
£25.61 (exc VAT) per EACH
Quantity Ordered Price per EACH
1 - 9 £25.61
10 - 99 £23.93
100+ £22.03
Quantity: - +

ID: 1"
OD: 1.3/8"
Length: 2"

Case hardened to a depth of 0.030" to 62-65HRC

Imperial Headless Liner dimensions

Imperial ISO Tolerances & fits

Headless liners are used with fixed & slip renewable bushes and are permanently pressed into a drill jig or fixture plate. The liner's ID tolerance is designed to give a precise sliding fit with the slip renewable bush's OD. They provide an accurate and stable location for the renewable bushes as well as protecting the jig plate from wear caused by frequent drill bush replacement.

No detailed specifications are available for this product.

There are no downloads for this product.
